Products / Pipe Sealants / EMS FORCE 5577 Pipe Sealant

Water Regulation Advisory Scheme (WRAS) Approval

Approval of pipe sealant shows that there is no effect on water quality under BS 6920 Standard.

Approval number: 1607538

Deutscher Verein des Gas- und Wasserfaches (DVGW) Approval

Its 100% leak-proof feature in gas and water metallic connections is approved according to DIN EN 751-1.

Approval number: NG-5146DM0480

Turkish Standards Institution (TSE) Approval

Its 100% leak-proof feature in gas and water metallic connections is approved according to TS EN 751-1.

Approval number: 14.0.30.4.34.00/TSE-67270

The Australian Gas Association (AGA) Approval

Its 100% leak-proof feature in gas passing, including LPG(liquid), metallic connections is approved according to AS 4623.

Approval number: 8728

NSF Approval

Approval of pipe sealant shows that there is no effect on water quality under NSF/ANSI 61 Standard.

Approval number: C0429590

Poland National Institute of Public Health (PZH) Approval

Approval of pipe sealant shows that there is no effect on public health under PZH Hygenic Standards.

Approval number: BK/W/0511/01/2019

EMS FORCE 5577 Pipe Sealant

Water Regulation Advisory Scheme (WRAS) Approval

Approval of pipe sealant shows that there is no effect on water quality under BS 6920 Standard.

Approval number: 1607538

Deutscher Verein des Gas- und Wasserfaches (DVGW) Approval

Its 100% leak-proof feature in gas and water metallic connections is approved according to DIN EN 751-1.

Approval number: NG-5146DM0480

Turkish Standards Institution (TSE) Approval

Its 100% leak-proof feature in gas and water metallic connections is approved according to TS EN 751-1.

Approval number: 14.0.30.4.34.00/TSE-67270

The Australian Gas Association (AGA) Approval

Its 100% leak-proof feature in gas passing, including LPG(liquid), metallic connections is approved according to AS 4623.

Approval number: 8728

NSF Approval

Approval of pipe sealant shows that there is no effect on water quality under NSF/ANSI 61 Standard.

Approval number: C0429590

Poland National Institute of Public Health (PZH) Approval

Approval of pipe sealant shows that there is no effect on public health under PZH Hygenic Standards.

Approval number: BK/W/0511/01/2019

Information

100% leak-proof sealing solution for metal threaded joints

- Very high setting speed even at cold temperatues(<0°C)

- Fixed parts can be disassambled by hand tools

- Enhanced chemical resistance

Fast setting

Features and Applications

Features

  • Suitable for metal-metal and plastic-metal threaded connections
  • Drinking water approval for quality water applications
  • No dirt with its non-dripping formulation
  • Keeps its sealing properties against shocks & vibrations long after the application
  • Provide enhanced resistance to many chemicals with its advanced formulation

Application

  • Close-fitting metal pipe threads where all kinds of water, oil, grease, and many chemicals pass
  • Pressure vessels
  • Air compressors
  • Hydraulic systems and tanks
  • Areas where resistance against vibration is required
  • Suitable for Type H thick metal thread joints according to TSE EN 751-1 Standard.

Usage and Instructions

Surface Preparation

1)

Ensure parts are clean, dry and free from oil and grease.

2)

​​​​​​​ Applied with a brush or directly from tube.

Application

1)

Apply the adhesive with a 360 turn to leading threads of the male and female fittings.

2)

Use an absorbent tissue paper to wipe off excess jointing compound in the direction of the thread.

3)

Assembly parts and hold on for 24 hours at 22-24°C to ensure full curing of jointing compound.

4)

For disassembly, use hand tools to remove mating parts. When it is hard to dissemble at room temperature, apply local heat until reaching 250°C and disassemble while hot. Then, remove any residual cured adhesive mechanically and clean parts with a proper solvent, acetone.

Technical Details

Approvals

NSF, WRAS, DVGW, TSE, AGA

Average handling time

10 minutes

Conditions: 22°C
Classification

Class III

AGA approval classification
Colour

Yellow

Corrosive

Non-corrosive

Flash Point

>93°C

Gap Filling

Up to 0.5mm

Maximum Rating Pressure

2000kPa (20bar)

AGA approved
Shelf Life

24 months

Under recommended conditions
Specific Gravity

1.02

Temperature range

-10°C to 150°C

Viscosity

50000 - 60000 cP

Conditions: 22°C Method: ISO 2555 Apparatus: Brookfield RVT, spindle 6

Documents

SDS

PDF EMS FORCE 5577 Safety Datasheet (CLP), EN [ 671.4 KB ]
PDF EMS FORCE 5577 Güvenlik Bilgi Formu, TR [ 2.0 MB ]

TDS

PDF EMS FORCE 5577 Technical Datasheet, EN [ 287.7 KB ]
PDF EMS FORCE 5577 Ficha Técnica, PR [ 197.4 KB ]
PDF EMS FORCE 5577 Teknik Bilgi Formu, TR [ 196.0 KB ]

Approvals

PDF EMS FORCE 5577 DVGW Gas Approval, EN [ 120.5 KB ]
PDF EMS FORCE 5577 WRAS Drinking Water Approval, EN [ 80.8 KB ]
PDF EMS FORCE 5577 AGA Gas and LPG Approval, EN [ 118.7 KB ]
PDF EMS FORCE 5577 NSF Drinking Water Approval, EN [ 28.8 KB ]
PDF EMS FORCE 5577 PZH Public Health (HYGENIC) Approval, EN [ 488.7 KB ]
PDF EMS FORCE 5577 TSE GAZ ONAYI, TR [ 103.7 KB ]

Package Size

Inventory Code Product Code Packaging Inner box Box Palette
11585 5577 50 ml 12 72 4,608
11593 5577 ACORDEON 50 ml 6 72 4,608
11595 5577 250 ml 9 54 1,620

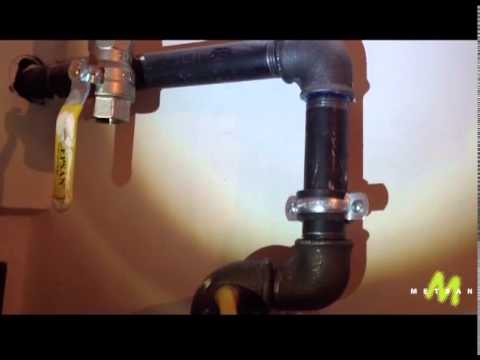

Videos
