100% leak-proof sealing solution for metal threaded joints
- Very high setting speed even at cold temperatues(<0°C)
- Fixed parts can be disassambled by hand tools
Products / Pipe Sealants / EMS FORCE 5543 Pipe Sealant
Water Regulation Advisory Scheme (WRAS) Approval
Approval of pipe sealant shows that there is no effect on water quality under BS 6920 Standard.
Approval number: 1607539
Deutscher Verein des Gas- und Wasserfaches (DVGW) Approval
Its 100% leak-proof feature in gas and water metallic connections is approved according to DIN EN 751-1.
Approval Number: NG-5146DM0479
Turkish Standards Institution (TSE) Approval
Its 100% leak-proof feature in gas and water metallic connections is approved according to TS EN 751-1.
Approval Number: 14.0.30.4.34.00/TSE-67270
NSF Approval
Approval of pipe sealant shows that there is no effect on water quality under NSF/ANSI 61 Standard.
Approval number: C0429590
Only products that are bearing NSF logo is NSF approved.
Poland National Institute of Public Health (PZH) Approval
Approval of pipe sealant shows that there is no effect on public health under PZH Hygenic Standards.
Approval number: BK/W/0511/01/2019
EMS FORCE 5543 Pipe Sealant
Water Regulation Advisory Scheme (WRAS) Approval
Approval of pipe sealant shows that there is no effect on water quality under BS 6920 Standard.
Approval number: 1607539
Deutscher Verein des Gas- und Wasserfaches (DVGW) Approval
Its 100% leak-proof feature in gas and water metallic connections is approved according to DIN EN 751-1.
Approval Number: NG-5146DM0479
Turkish Standards Institution (TSE) Approval
Its 100% leak-proof feature in gas and water metallic connections is approved according to TS EN 751-1.
Approval Number: 14.0.30.4.34.00/TSE-67270
NSF Approval
Approval of pipe sealant shows that there is no effect on water quality under NSF/ANSI 61 Standard.
Approval number: C0429590
Only products that are bearing NSF logo is NSF approved.
Poland National Institute of Public Health (PZH) Approval
Approval of pipe sealant shows that there is no effect on public health under PZH Hygenic Standards.
Approval number: BK/W/0511/01/2019
Information
Fast setting
Non-dripping
Features and Applications
Features
- Suitable for metal-metal and plastic-metal threaded connections
- Drinking water approval for quality water applications
- No dirt with its non-dripping formulation
- Keeps its sealing properties against shocks & vibrations long after the application
Application
- Close-fitting metal pipe threads where all kinds of water, oil, grease, and many chemicals pass
- Pressure vessels
- Air compressors
- Hydraulic systems and tanks
- Areas where resistance against vibration is required
- Suitable for Type H thick metal thread joints according to TSE EN 751-1 Standard.
Usage and Instructions
Surface Preparation
1)
Ensure parts are clean, dry and free from oil and grease.
2)
Applied with a brush or directly from tube.
Application
1)
Apply the adhesive with a 360 turn to leading threads of the male and female fittings.
2)
Use an absorbent tissue paper to wipe off excess jointing compound in the direction of the thread.
3)
Assembly parts and hold on for 24 hours at 22-24°C to ensure full curing of jointing compound.
4)
For disassembly, use hand tools to remove mating parts.
5)
When it is hard to dissemble at room temperature, apply local heat until reaching 250°C and disassemble while hot. Then, remove any residual cured adhesive mechanically and clean parts with a proper solvent, acetone.
Technical Details
Approvals
NSF, WRAS, DVGW, TSE
Average handling time
10 minutes
Conditions: 22°C
Colour
Blue
Corrosive
No
Flash Point
>93°C
Method: ASTM D56-05
Gap Filling
Up to 0.20mm
Shelf Life
24 Months
Specific Gravity
1.030
22°C
Temperature range
-50°C / +150°C
Viscosity
7000 - 8000 cPs (@20 rpm)
22°C, Method: ISO 2555, Equipment: Brookfield RVT, spindle 3Documents
TDS
SDS
Approvals
Package Size
| Inventory Code | Product Code | Packaging | Inner box | Box | Palette |
|---|---|---|---|---|---|
| 11539 | 5543 | 15 ml | 24 | 144 | 8,640 |
| 11547 | 5543 | 50 ml | 10 | 120 | 4,320 |
| 12392 | 5543 | 100 ml | 12 | 96 | 1,296 |
| 11558 | 5543 | 250 ml | 6 | 36 | 1,296 |

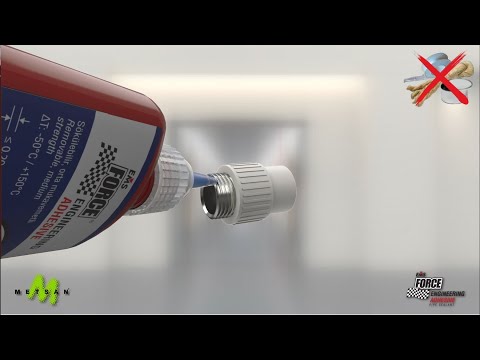

Videos
